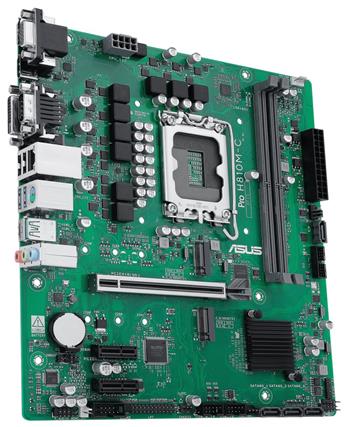

ASUS PRO H810M-C-CSM

ASUS PRO H810M-C-CSM * mATX Form Factor CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel H810 Chipset Paměť: 2 x DIMM slots, max. 128GB, DDR5 *Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile II (AEMP II) Grafické porty: *1 x DisplayPort *1 x VGA port *1 x DVI-D port *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 5.0 x16 slot Intel® H810 Chipset *2 x PCIe 4.0 x1 slots Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) *2 x USB 5Gbps ports (2 x Type-A) *2 x USB 2.0 ports (2 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) *2 x USB 5Gbps ports (2 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x VGA port *1 x DVI-D port *1 x HDMI™ port *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x COM port *1 x PS/2 keyboard/mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x COM Debug header *1 x LPT header *1 x Mono-Out Audio header (with Amp IC) *1 x SMBUS header *1 x Speaker header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O shield *1 x M.2 anchor package Dokumenty: *1 x ACC Express activation key card *1 x Quick start guide
